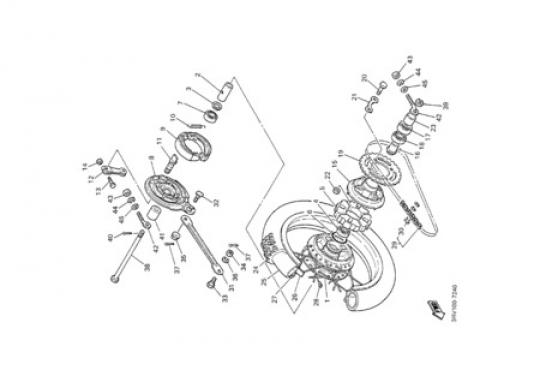

REAR WHEEL

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	21W253110000 MASA TRASERA	1	108,70 €	+
2	905601214500 SPACER	1	15,45 €	+
3	102253150000 FLANGE, SPACER	1	2,14 €	+
4	933063010200 BEARING	1	12,13 €	+
5	21W253640000 DAMPER	1	10,24 €	+
6	932104104100 O-RING	1	0,75 €	+
7	933063010300 COJINETE	1	12,13 €	+
8	1M3253210200 PLACA DE ZAPATA DE FRENO	1	Obsoleta
9	4BEW25360000 JUEGO DE ZAPATA DE FRENO	1	19,50 €	+
10	905061526000 .SPRING, TENSION	1	6,66 €	+
11	3Y6253510000 CAMSHAFT	1	28,70 €	+
12	538253550000 LEVER, CAMSHAFT	1	18,33 €	+
13	901010627800 BOLT	1	0,33 €	+
14	953070660000 .NUT	1	0,49 €	+
15	296253660100 EMBRAGUE DE MASA	1	87,49 €	+
16	21W253870000 AXLE, SPROCKET	1	22,63 €	+
17	931063000400 OIL SEAL	1	6,86 €	+
18	933060040600 COJINETE	1	15,56 €	+
19	21W254321000 CORONA	1	20,18 €	+
20	901010867200 BOLT	1	1,33 €	+
21	102254120000 ARANDELA	1	1,41 €	+
22	901700836600 TUERCA	1	1,13 €	+
23	90387207G300 COLLAR	1	13,07 €	+
24	94130121A700 TIRE (3.00-12 2PR)	1	65,73 €	+
25	942271221600 TUBE (2.75/3.00-12 TR4)	1	32,30 €	+
26	943301213000 BAND, RIM (3.00-12)	1	7,13 €	+
27	944161233400 ARO	1	101,75 €	+
28	21W253040000 SPOKE SET, REAR	1	68,75 €	+
29	945805208400 CHAIN, DRIVE	1	31,66 €	+
30	946805200100 .JOINT, CHAIN(DID 420M)	1	5,19 €	+
31	21W253710000 BARRA TENSORA	1	Obsoleta
32	901090818300 BOLT	1	2,14 €	+
33	901090836800 BOLT	1	3,65 €	+
34	953070870000 NUT	1	1,19 €	+
35	957070850000 NUT, FLANGE	1	2,05 €	+
36	929070860000 .WASHER, PLATE	1	0,49 €	+
37	914012001500 CHAVETA	1	1,78 €	+
38	367253810100 EJE DE RUEDA	1	22,38 €	+
39	901711200500 TUERCA ENTALLADA	1	3,60 €	+
40	914013002500 CHAVETA	5	1,92 €	+
41	903871241200 COLLAR	1	9,78 €	+
42	102253890000 TIRADOR DE CADENA	1	8,90 €	+
43	953070660000 .NUT	1	0,49 €	+
44	929070610000 WASHER, SPRING	1	0,49 €	+
45	90201061A500 .WASHER, PLATE	1	1,33 €	+
