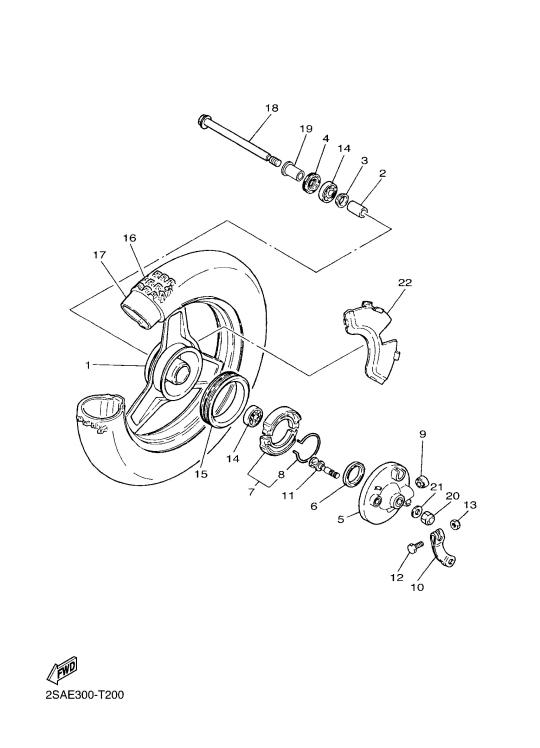

FRONT WHEEL

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	5M02518000P1 RUEDA DELANTERA COMPLETA	1	137,80 €	+
2	905601017300 SPACER	1	7,68 €	+
3	2E9251160000 FLANGE, SPACER 2	1	2,05 €	+
4	931061701500 OIL SEAL	1	5,67 €	+
5	2SA251210198 PLATE, BRAKE SHOE	1	49,39 €	+
6	931093405700 OIL SEAL	1	5,21 €	+
7	3PTW253A1000 BRAKE SHOE KIT	1	18,94 €	+
8	2E9251330000 .SPRING, RETURN	1	3,65 €	+
9	903361503300 PLUG, TAPER	1	3,75 €	+
10	2T4251550000 LEVER, CAMSHAFT 1	1	16,03 €	+
11	2E9251510100 CAMSHAFT	1	15,76 €	+
12	970070502000 BOLT	1	1,28 €	+
13	953070560000 NUT	1	1,28 €	+
14	933062000600 BEARING	1	18,70 €	+
15	2T4251850000 RING 1	1	7,82 €	+
16	941251065100 TIRE(BRIDGESTONE2.50-10 4PM29)	1	46,94 €	+
17	942251017200 TUBE (BRIDGESTONE 2.50-10)	1	21,46 €	+
18	901051030000 BOLT, FLANGE	1	9,13 €	+
19	903871011200 COLLAR	1	18,23 €	+
20	901851009100 NUT, SELF-LOCKING	1	4,19 €	+
21	929031020000 WASHER, PLAIN	1	1,24 €	+
22	36E2539F0000 PLATE 1	1	12,43 €	+
