CARBURETOR

Volver al despiece completo

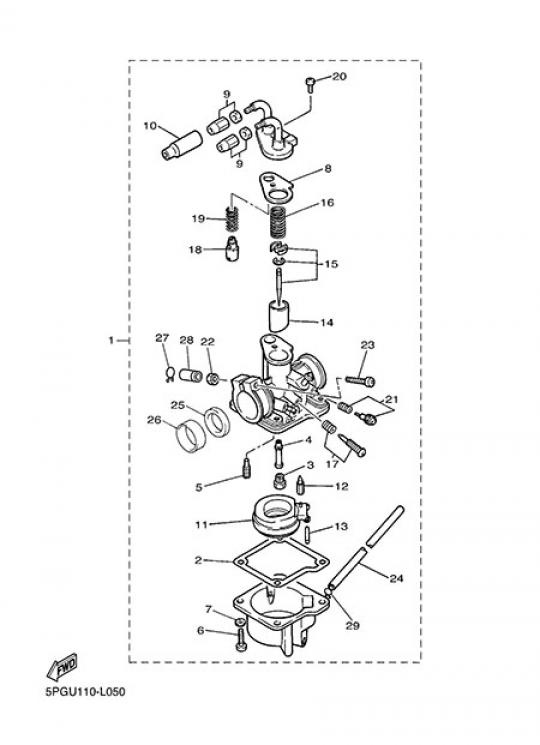

#	Ref.	unds.	Precio/unidad
1	5PG141011100 CARBURETOR ASSY 1	1	180,12 €	+
2	3L5141840000 .GASKET, FLOAT CHAMBER	1	7,75 €	+
3	620142311400 .JET, MAIN (# 70)	1	15,28 €	+
4	3L7141411200 .NOZZLE, MAIN	1	26,11 €	+
5	3L5141424000 .JET, PILOT (# 40)	1	11,78 €	+
6	985070401400 .SCREW, PAN HEAD	1	0,49 €	+
7	929070410000 .WASHER, SPRING	1	0,22 €	+
8	3L5141980000 .GASKET	1	4,24 €	+
9	17L141060000 .CABLE ADJUST SCREW SET	1	7,04 €	+
10	1R0141690000 .CAP	1	7,82 €	+
11	3L6141850100 .FLOAT	1	32,39 €	+
12	3L5141900100 .NEEDLE VALVE ASSY	1	34,31 €	+
13	603141860000 .PIN, FLOAT	1	2,47 €	+
14	3L5141124000 .VALVE, THROTTLE 1	1	51,07 €	+
15	5PG1490J0000 .NEEDLE SET	1	19,10 €	+
16	174141310100 .SPRING, THROTTLE VALVE	1	7,04 €	+
17	36R141030000 .THROTTLE SCREW SET	1	17,64 €	+
18	127141710000 .PLUNGER, STARTER	1	28,70 €	+
19	127141350000 .COIL, SPRING	1	3,97 €	+
20	986070511200 .SCREW, OVAL HEAD	1	0,22 €	+
21	36R141040000 .AIR SCREW SET	1	12,16 €	+
22	988070510000 .NUT	1	0,75 €	+
23	985070503000 .SCREW, PAN HEAD	1	0,33 €	+
24	214141970000 .PIPE	1	4,72 €	+
25	1M3149970000 .SEAL	1	7,13 €	+
26	1V3142710000 .INSULATOR	1	11,33 €	+
27	55X149370000 .CLIP	1	4,57 €	+
28	3XV141690000 .CAP	1	6,22 €	+
29	22F141390000 .CLIP, PIPE	1	1,06 €	+
