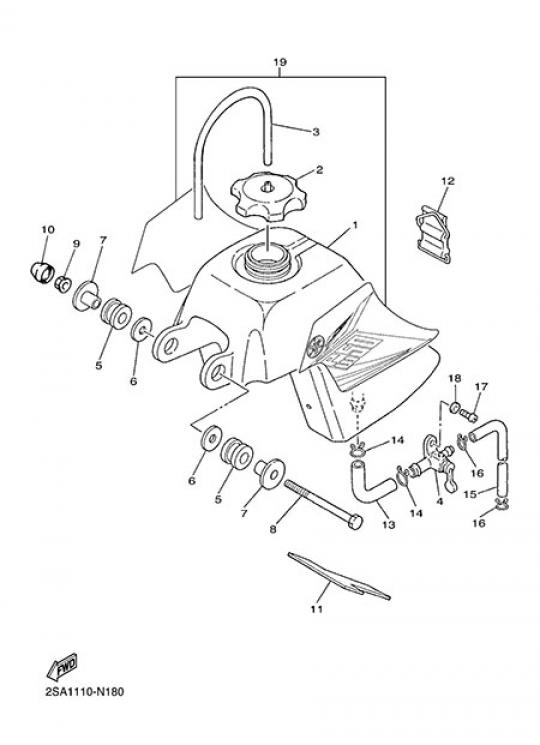

FUEL TANK

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	5PG241101000 DEPOSITO DE COMBUSTIBLE COMP.	1	124,13 €	+
2	2FG246101000 CAP ASSY	1	30,15 €	+
3	904450900500 HOSE	1	3,16 €	+
4	4X4245001000 GRIFO DE COMBUSTIBLE 1	1	48,61 €	+
5	904801829000 GROMMET	1	5,10 €	+
6	902010674700 WASHER, PLATE	1	3,53 €	+
7	90387077F400 COLLAR	1	6,54 €	+
8	970070609000 BOLT	1	2,05 €	+
9	957070650000 NUT, FLANGE	1	4,35 €	+
10	5PG2467E0000 CAP	1	5,36 €	+
11	3R0241810000 DAMPER, LOCATING 1	1	6,44 €	+
12	59V241730000 BAND, TANK FITTING 1	1	15,87 €	+
13	5PG243111000 PIPE, FUEL 1	1	5,26 €	+
14	904671205200 CLIP	1	2,05 €	+
15	90445095J000 HOSE (L130)	1	3,16 €	+
16	904670800300 CLIP	1	1,88 €	+
17	985070601000 SCREW, PAN HEAD	1	0,49 €	+
18	929070660000 WASHER, PLATE	1	0,49 €	+
19	2SA242400000 JUEGO DE CALCOMANIAS	1	49,66 €	+
