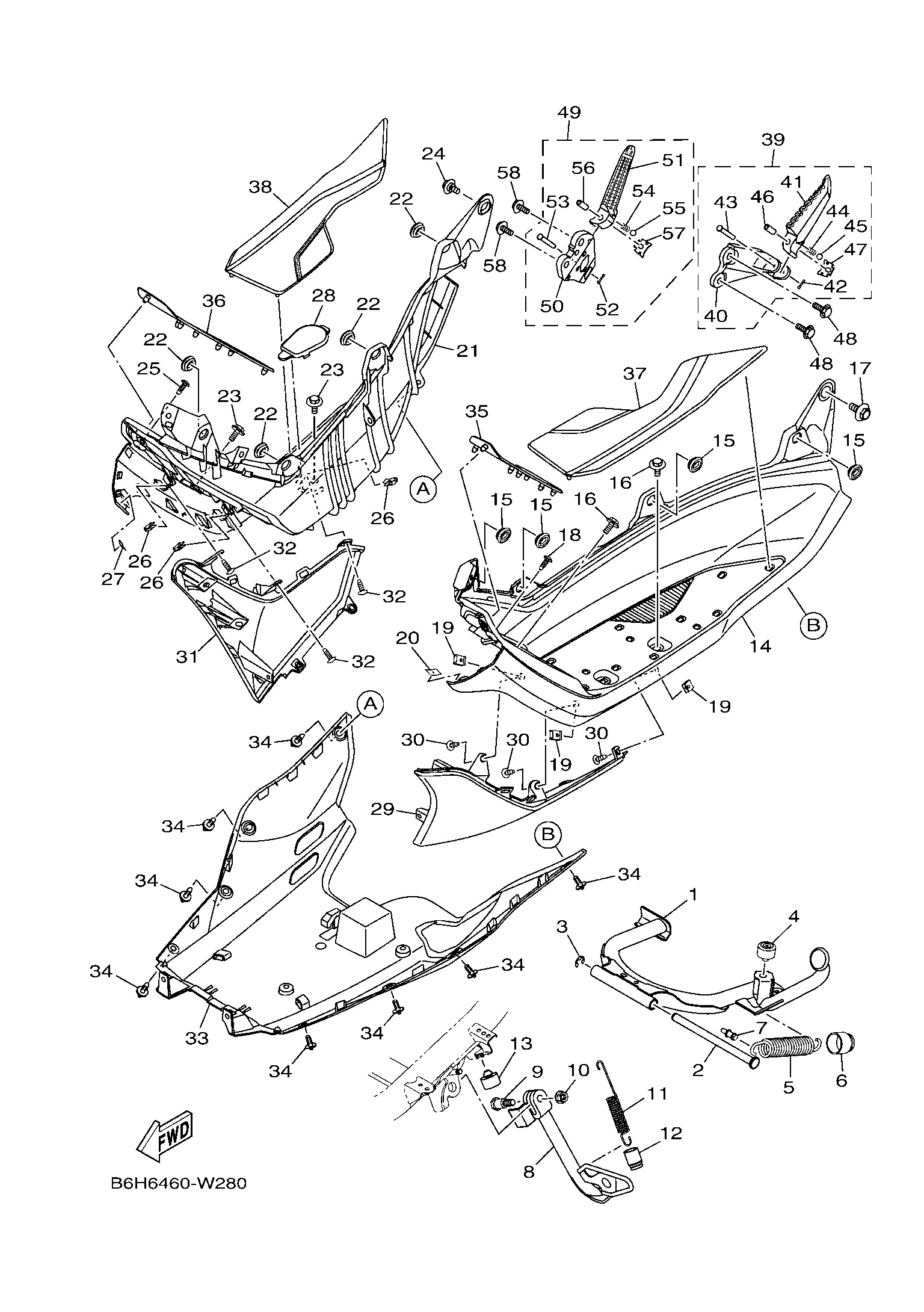

| # | Ref. | unds. | Precio/unidad | |
|---|---|---|---|---|
| 1 |
B6HF71110000 STAND, MAIN |
1 | 114,24 € | + |
| 2 |
B6HF71120000 SHAFT, MAIN STAND |
1 | 11,79 € | + |
| 3 |
990020960000 CIRCLIP |
1 | 1,97 € | + |
| 4 |
54PF71140000 STOPPER, MAIN STAND |
1 | 3,88 € | + |
| 5 |
905064080600 SPRING, TENSION |
1 | 1,06 € | + |
| 6 |
B6HF247A0000 HOSE 1 |
1 | 5,85 € | + |
| 7 |
1LBF72540000 HOOK |
1 | 3,01 € | + |
| 8 |
B6HF73110100 STAND, SIDE |
1 | 40,03 € | + |
| 9 |
B63F72170000 BOLT |
1 | 5,10 € | + |
| 9 |
B65F72170000 BOLT |
1 | 5,10 € | + |
| 10 |
956021020000 NUT, SELF-LOCKING |
1 | 3,43 € | + |
| 11 |
905062081800 SPRING, TENSION |
1 | 1,06 € | + |
| 12 |
B6HF247B0000 HOSE 2 |
1 | 1,06 € | + |
| 13 |
54PF71140000 STOPPER, MAIN STAND |
1 | 3,88 € | + |
| 14 |
B6HF74810000 BOARD, FOOTREST |
1 | 62,21 € | + |
| 15 |
904800155900 GROMMET |
1 | 1,28 € | + |
| 16 |
901190623500 BOLT, WITH WASHER |
1 | 1,06 € | + |
| 17 |
90109068B200 BOLT |
1 | 1,97 € | + |
| 18 |
977025001600 SCREW, TAPPING |
1 | 0,49 € | + |
| 19 |
901830580700 NUT, SPRING |
1 | 0,49 € | + |
| 20 |
905200284900 DAMPER, PLATE |
1 | 0,17 € | + |
| 21 |
B6HF74880000 BOARD, FOOTREST 2 |
1 | 62,21 € | + |
| 22 |
904800155900 GROMMET |
1 | 1,28 € | + |
| 23 |
901190623500 BOLT, WITH WASHER |
1 | 1,06 € | + |
| 24 |
90109068B200 BOLT |
1 | 1,97 € | + |
| 25 |
977025001600 SCREW, TAPPING |
1 | 0,49 € | + |
| 26 |
901830580700 NUT, SPRING |
1 | 0,49 € | + |
| 27 |
905200284900 DAMPER, PLATE |
1 | 0,17 € | + |
| 28 |
2DPF172W0100 COVER |
1 | 5,85 € | + |
| 29 |
B6HF171L00P0 MOLE, SIDE COVER 1 |
1 | 32,24 € | + |
| 29 |
B6HF171L00PA MOLE, SIDE COVER 1 |
1 | 32,24 € | + |
| 29 |
B6HF171L003E MOLE, SIDE COVER 1 |
1 | 32,24 € | + |
| 29 |
B6HF171L00PD MOLE, SIDE COVER 1 |
1 | 32,24 € | + |
| 30 |
977025001600 SCREW, TAPPING |
1 | 0,49 € | + |
| 31 |
B6HF171M00P0 MOLE, SIDE COVER 2 |
1 | 32,24 € | + |
| 31 |
B6HF171M00PA MOLE, SIDE COVER 2 |
1 | 32,24 € | + |
| 31 |
B6HF171M003E MOLE, SIDE COVER 2 |
1 | 32,24 € | + |
| 31 |
B6HF171M00PD MOLE, SIDE COVER 2 |
1 | 32,24 € | + |
| 32 |
977025001600 SCREW, TAPPING |
1 | 0,49 € | + |
| 33 |
B6HF83850100 COVER, LOWER |
1 | 45,64 € | + |
| 34 |
902690681600 RIVET |
1 | 1,24 € | + |
| 35 |
B6HF74830000 MAT 1 |
1 | 13,40 € | + |
| 36 |
B6HF74840000 MAT 2 |
1 | 13,40 € | + |
| 37 |
B6HF74930000 MAT 3 |
1 | 16,21 € | + |
| 38 |
B6HF74940000 MAT 4 |
1 | 16,21 € | + |
| 39 |
B6HF74301100 REAR FOOTREST ASSY 1 |
1 | 52,63 € | + |
| 40 |
B6HF741L1000 .BRACKET 4 |
1 | 11,97 € | + |
| 41 |
2DPF74311000 .FOOTREST, REAR 1 |
1 | 16,35 € | + |
| 42 |
914022001200 PIN, COTTER |
1 | 1,78 € | + |
| 43 |
917020603800 PIN, CLEVIS |
1 | 1,28 € | + |
| 44 |
905011274300 SPRING, COMPRESSION |
1 | 4,19 € | + |
| 45 |
935010483000 .BALL |
1 | 2,89 € | + |
| 46 |
90387064H800 COLLAR |
1 | 3,60 € | + |
| 47 |
2DPF74370100 .WASHER, SPECIAL |
1 | 0,42 € | + |
| 48 |
95E320802000 BOLT, FLANGE DEEP RECESS |
1 | 0,33 € | + |
| 49 |
B6HF74401100 REAR FOOTREST ASSY 2 |
1 | 52,63 € | + |
| 50 |
B6HF742L1000 .BRACKET 5 |
1 | 20,70 € | + |
| 51 |
2DPF74411000 .FOOTREST, REAR 2 |
1 | 16,35 € | + |
| 52 |
914022001200 PIN, COTTER |
1 | 1,78 € | + |
| 53 |
917020603800 PIN, CLEVIS |
1 | 1,28 € | + |
| 54 |
905011274300 SPRING, COMPRESSION |
1 | 4,19 € | + |
| 55 |
935010483000 .BALL |
1 | 2,89 € | + |
| 56 |
90387064H800 COLLAR |
1 | 3,60 € | + |
| 57 |
2DPF74370100 .WASHER, SPECIAL |
1 | 0,42 € | + |
| 58 |
95E320802000 BOLT, FLANGE DEEP RECESS |
1 | 0,33 € | + |
