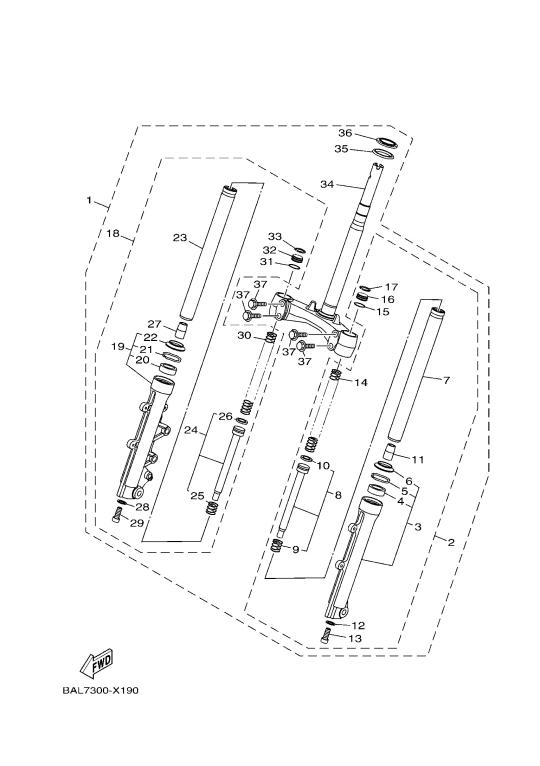

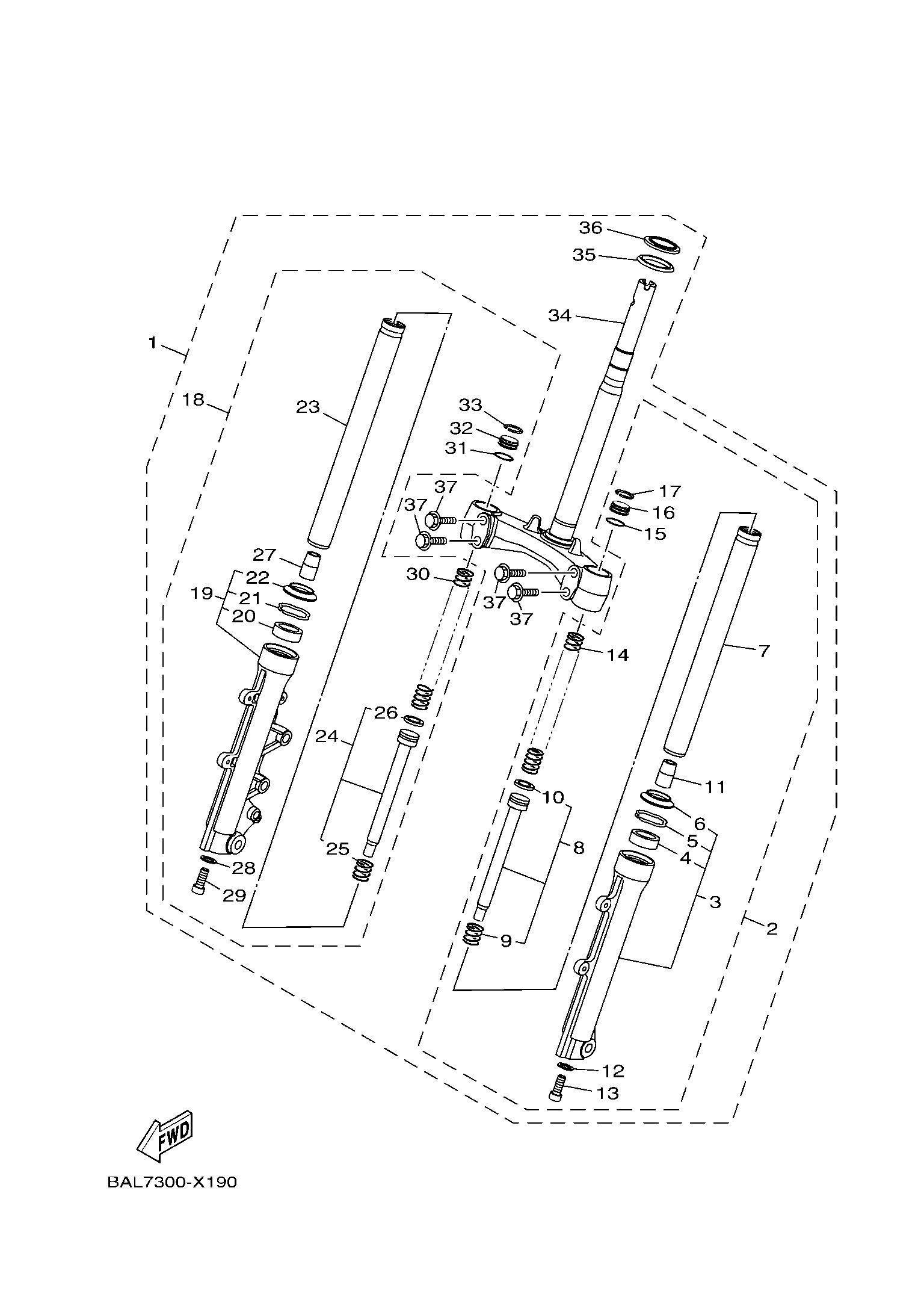

FRONT FORK

Volver al despiece completo

#	Ref.	unds.	Precio/unidad
1	B4VF31000000 FRONT FORK ASSY	1	459,61 €	+
2	B4VF31020000 .FRONT FORK ASSY (L.H)	1	199,33 €	+
3	2DPF31260000 ..TUBE, OUTER (L.H)	1	161,62 €	+
4	3HBF31450000 ...OIL SEAL	1	7,10 €	+
5	3V3F31560000 ...RING, SNAP	1	3,97 €	+
6	3HBF31440000 ...SEAL, DUST	1	5,40 €	+
7	2DSF31100000 ..INNER TUBE COMP.1	1	133,77 €	+
8	2DPF31700000 ..CYLINDER COMP., FRONT FORK	1	51,71 €	+
9	2K5231520000 ...SPRING, SUB	1	Obsoleta
10	2DPF31570000 ...RING, PISTON	1	7,50 €	+
11	2DPF31730000 ..SPINDLE, TAPER	1	8,90 €	+
12	2BUF31580000 .GASKET	1	4,30 €	+
13	278F31815000 ..BOLT, HEXAGON SOCKET HEAD	1	0,55 €	+
14	B6HF31410000 ..SPRING, FRONT FORK	1	11,82 €	+
15	3Y6231140000 ..GASKET	1	5,21 €	+
16	2DPF31110000 ..BOLT, CAP	1	17,77 €	+
17	2DPF31530000 ..RING, SNAP	1	5,03 €	+
18	B4VF31030000 .FRONT FORK ASSY (R.H)	1	199,33 €	+
19	2DPF31360000 ..TUBE, OUTER	1	161,62 €	+
20	3HBF31450000 ...OIL SEAL	1	7,10 €	+
21	3V3F31560000 ...RING, SNAP	1	3,97 €	+
22	3HBF31440000 ...SEAL, DUST	1	5,40 €	+
23	2DSF31100000 ..INNER TUBE COMP.1	1	133,77 €	+
24	2DPF31700000 ..CYLINDER COMP., FRONT FORK	1	51,71 €	+
25	2K5231520000 ...SPRING, SUB	1	Obsoleta
26	2DPF31570000 ...RING, PISTON	1	7,50 €	+
27	2DPF31730000 ..SPINDLE, TAPER	1	8,90 €	+
28	2BUF31580000 .GASKET	1	4,30 €	+
29	278F31815000 ..BOLT, HEXAGON SOCKET HEAD	1	0,55 €	+
30	B6HF31410000 ..SPRING, FRONT FORK	1	11,82 €	+
31	3Y6231140000 ..GASKET	1	5,21 €	+
32	2DPF31110000 ..BOLT, CAP	1	17,77 €	+
33	2DPF31530000 ..RING, SNAP	1	5,03 €	+
34	B6HF33400000 .UNDER BRACKET COMP.	1	222,53 €	+
35	B63F34620000 .SEAL, DUST	1	7,72 €	+
36	2TDF38750000 .BEARING, STEERING LOWER	1	19,74 €	+
37	5YWF33461000 .BOLT 1	1	3,75 €	+
